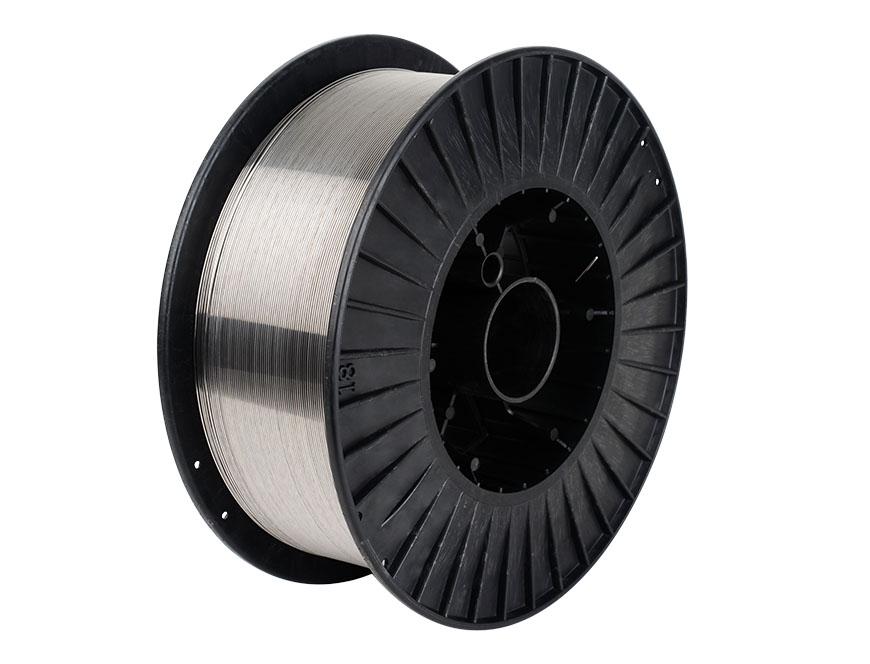

ลวดเชื่อม ฟลักซ์คอร์ 1.2mm E71T-1 SUMO (15kg./ลัง)

Welding Wire FLUX CORE 1.2mm E71T-1 SUMO (15kg./ctn)

Sumo E71T-1C is a flux-cored welding wire basic-rutile designed for all position welding of mild steel in applications requiring moderate levels strength and very good toughness. impact values of weld metal are good.

CONFORMANCE

  • ISO 9001:2000
  • AWS A5.20 E71T-1C
  • SHIELDING GAS
  • 100% Co; Shielding gas.

APPLICATIONS

  • All position welding of machinery, shipbuilding, bridges, offshored structures, Strutural fabrication

APPROVALS

  • CCS :3YSH10
  • LR :3YSH10
  • GL :3YS5S
  • ABS :3YSAH10
  • DNV :lllYSH10
  • BV :SA3YMH10
  • NK :KSW53GH10
  • RINA :3YSAH10

ADVANTAGE

  • Excellent mechanical properties
  • Slag system provides for puddlesupport, good wetting, and bead shape in all position.
  • Arc action and metal transfer are smooth
  • Slag removal is easily achieved with hand tools
  • One sided welding is possible with ceramic backing and will produce excellent results.
  • Applications include those in general fabrication, Ship or barge construction, buliding or bridge erection, and off-shoreindustries.
  • Manufactured under a quality system certified to ISO 9001 requirements.

ข้อเสนอแนะ

  • ผลิตภัณฑ์ควรเก็บไว้ในที่แห้งและในบรรจุภัณฑ์เดิม

คำเตือน

  • ควรสวมอุปกรณ์ป้องกันทุกครั้งก่อนใช้งาน



Chemical Composition (%) Φ 1.2mm

Element C Mn Si S P Cr Ni Mo V Cu
Requirement ≤0.12 ≤1.75 ≤0.90 ≤0.03 ≤0.03 – – – – – – – – – –
Actual Result 0.048 1.22 0.38 0.0038 0.012 – – – – – – – – – –

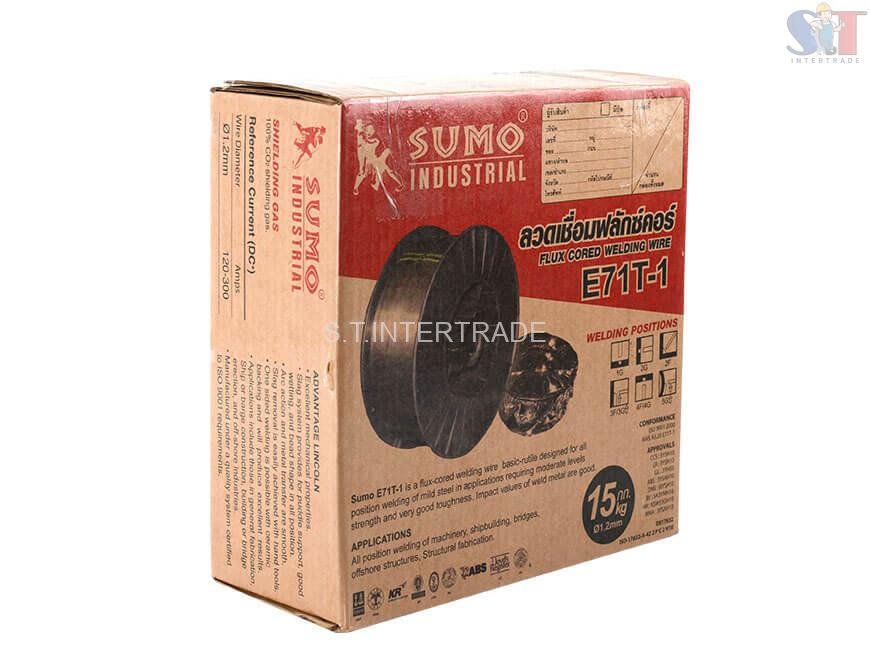

บรรจุภัณฑ์ : Packing
